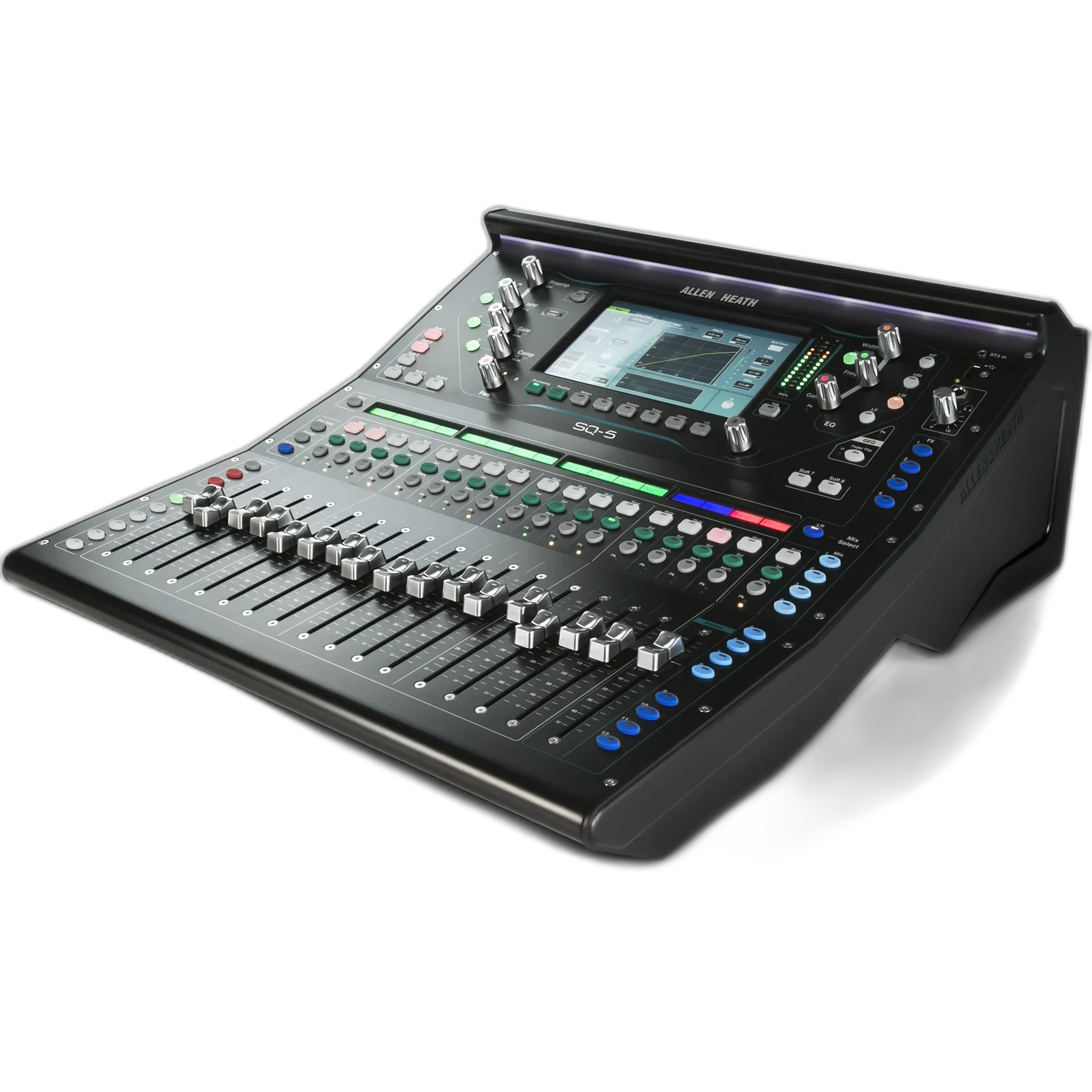

Allen & Heath SQ5 Digital Mixer
by Allen & Heath
48-channel, 36-bus digital mixing console with 17 motorised faders and a 7-inch touchscreen, built around Allen & Heath's XCVI FPGA DSP engine.
Contact for pricing
Request Quote
Specifications
- Processing Channels 48
- Mix Buses 36 (12 stereo mix, 4 FX send, 3 stereo matrix, LR master)
- Faders 17 motorised faders (16+1 master), 6 layers — 96 assignable strips
- Display 7-inch full-colour touchscreen
- DSP XCVI FPGA core, <1 ms latency, 96 kHz internal processing
- Local Inputs 16 XLR mic/line
- Expansion SLink port (stage boxes, MADI, optional Dante card)
- Recording 32×32 USB audio interface (48 kHz)
- FX 8 stereo RackFX engines (reverb, delay, chorus, and more)
Allen & Heath SQ5
A compact 48-channel digital console built around Allen & Heath’s XCVI FPGA DSP engine. The SQ5 fits a lot of mix capability into a small footprint — 17 motorised faders across 6 layers give access to 96 assignable channel strips, and the 7-inch touchscreen handles routing, processing, and FX without external gear.
The SQ5 starts with 16 local XLR inputs and expands further via the SLink port using Allen & Heath’s stage box range when more inputs are needed at front-of-house or monitor world.
Suggested Uses
- Theatrical productions and live performance
- Corporate conferences and presentations
- Houses of worship
- Concerts and touring
- Multi-room or multi-stage events with stage box expansion
What’s Included
- SQ5 console
- Power cable
- Operator available on request — contact us to discuss your show requirements
